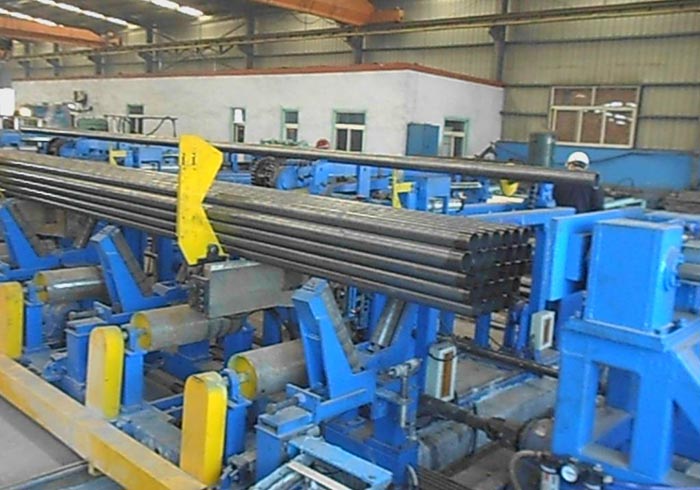

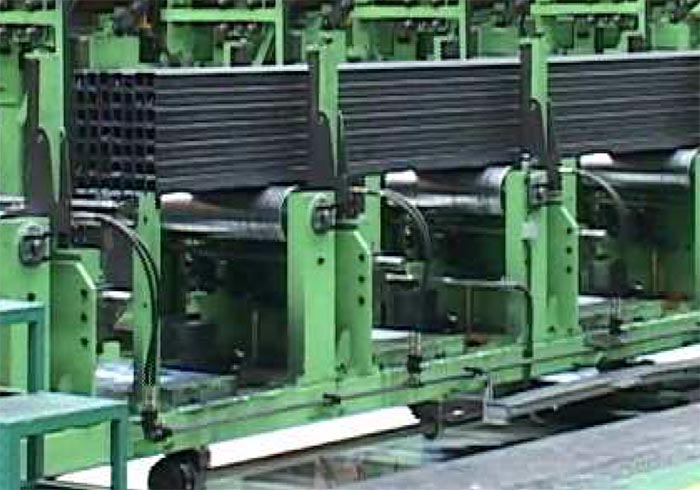

Tube Packaging Line
Once the steel tubes are manufactured, they need to be taken and stored away. SRET tube packaging machines answer these needs.
Thanks to our long and proven experience in the tube & pipe production and finishing industry, SRET Equipment offers a full range of packaging machines for square, rectangular, hexagonal bundles. Our packaging line provide high production speed, full automation of production process, high product quality, and optimum safety standards for the operators involved.
Upon customer’s choice, SRET tube packaging line can be designed to be stand-alone (off line) or on-line, fully automatic or semi-automatic. The packaging line can include bundle formation unit (counting, aligning, strapping), bundle transfer unit, conveyor, weighing, labeling, and final storage area.
SRET tube packaging line provides maximum efficiency, meaning reduced total cost of ownership and high productivity.
Value Highlights
- Programming, sequencing, and positioning control
- Low cost of operation with full automation
- Real time operation and monitoring in production process, self diagnosis and trouble shooting
- Switch between auto and manual mode, round and square tube
- Highly reliable, robust design
- Highly flexible, tailored to the customer’s requests
- Minimal maintenance requirements
Technical Data Sheet
Model Categories
| Model No. | Tube Shape | Tube Size (mm) |
| TPL32 | Round, Square, Rectangular | Ø 12 – 32
□ 10 – 25 |
| TPL127 | Round, Square, Rectangular | Ø 42 – 127
□ 35 – 100 |
| TPL219 | Round, Square, Rectangular | Ø 114 – 219
□ 60 – 200 |
| TPLF50 | Square, Rectangular | □ 12 – 50 |
| TPLF120 | Square, Rectangular | □ 60 – 120 |
| TPLF200 | Square, Rectangular | □ 100 – 200 |
| TPLF300 | Square, Rectangular | □ 150 – 300 |
Feature Options
| Feature | Options | ||
| Automation | □ Full automation | □ Semi-automaton (Automatic stacking & manual strapping) | |
| Pack Weight | □ < 1 t | □ 1 – 2 t | □ > 2 t |
| Capturing Mode | □ Flip | □ Flat push | □ Rotary |
| Pack Discharge Mode | □ Longitudinal | □ Transverse | |
| Line Speed | □ ≤ 70m/min, (11 tube/min.) | □ ≤ 120m/min, (20 tube/min.) | □ ≤ 300m/min, (50 tube/min.) |
| Stacking Mode | □ Fork lift | □ Electromagnetic sucker | |
| Auxiliaries (Multiple) | □ Draining | □ Weighing | □ Buffer stock |
